SESAME 5 USA
10
A lovable design that has continuously challenged with an indomitable spirit.
Revived after 10 years.

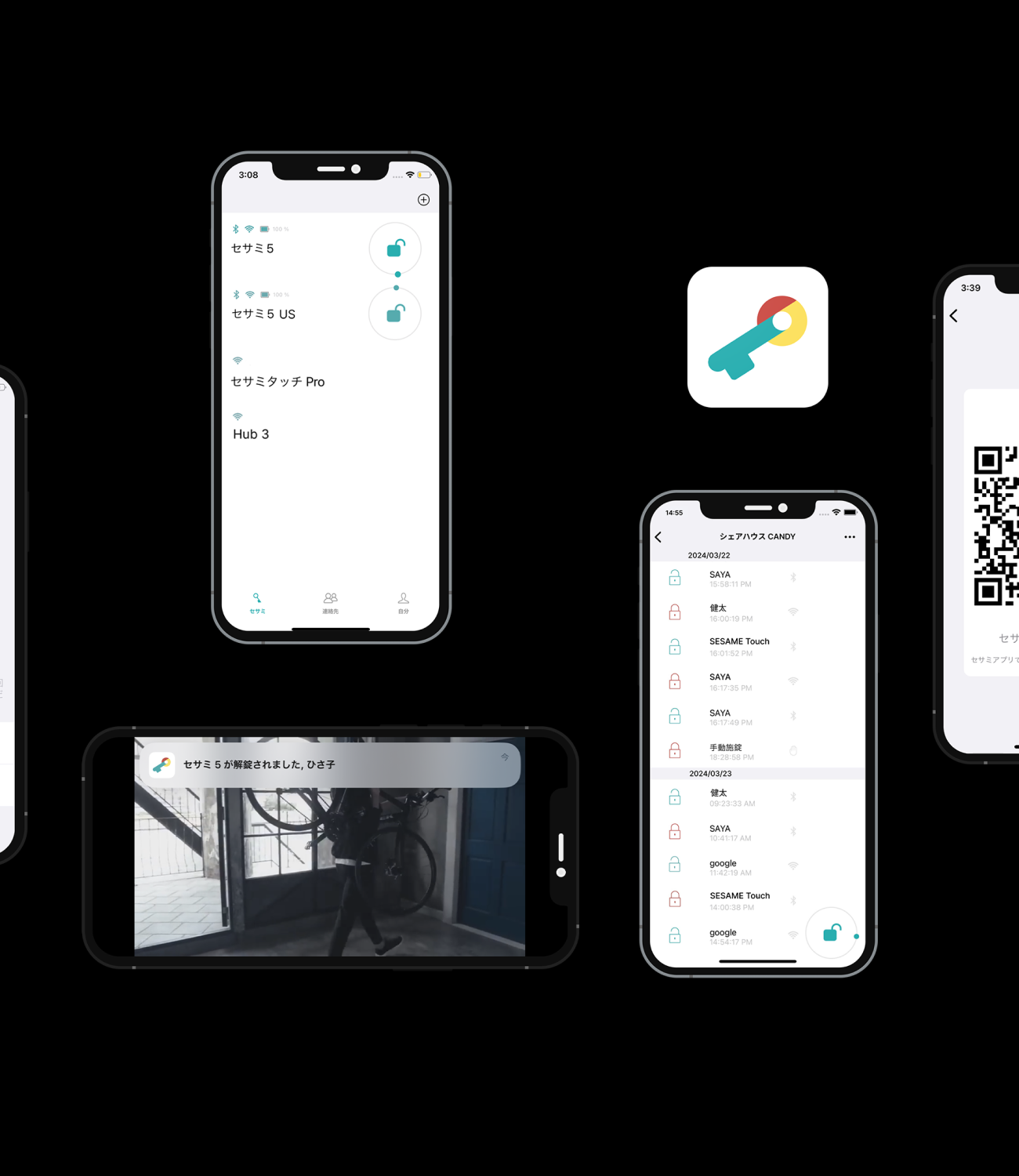

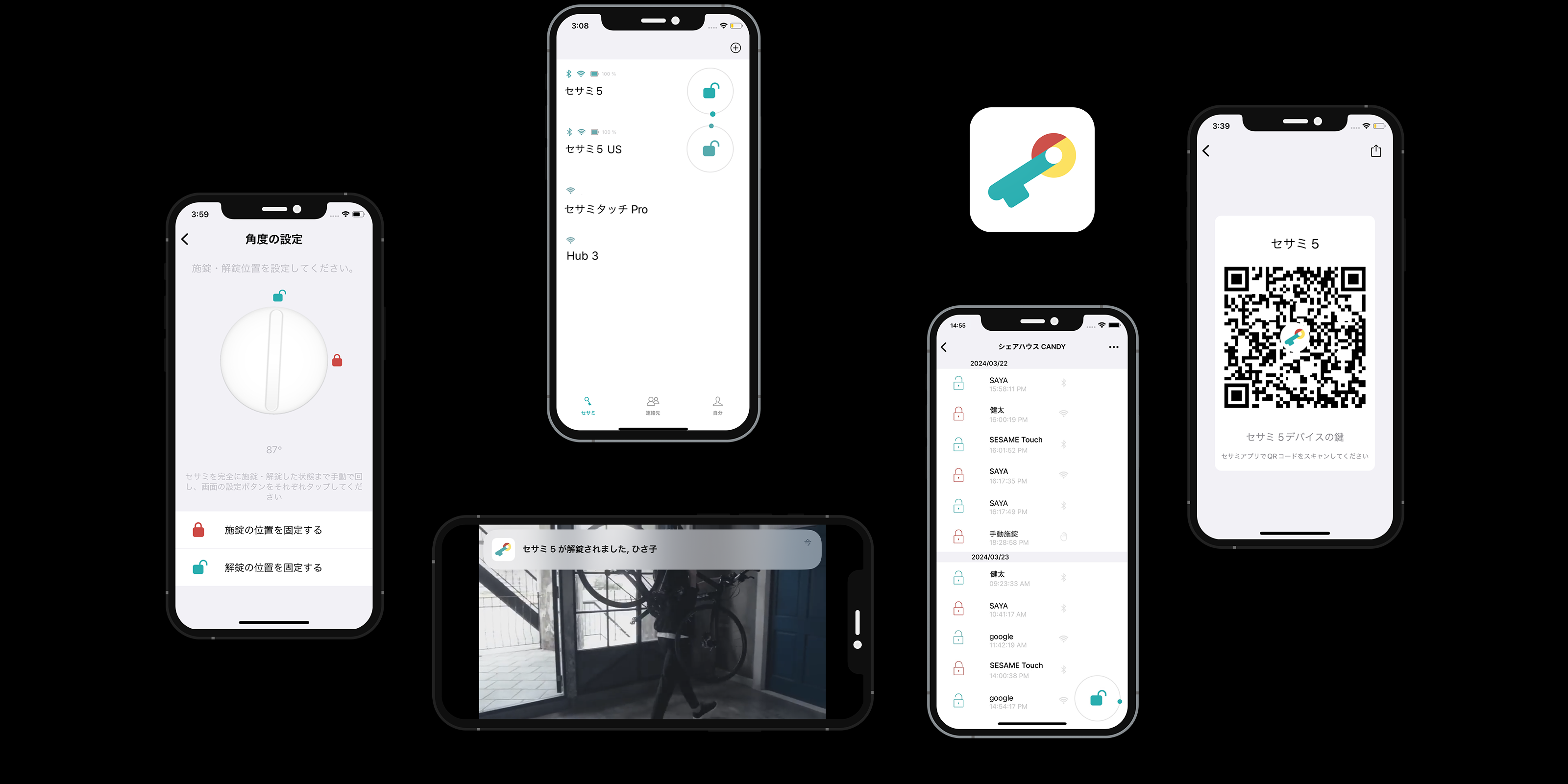

The latest SesameOS
OS. Reinvented.
Our latest innovation. Perfect harmony.
Note: This video showcases our original SESAME smart locks. While it captures our core vision, SESAME 5 USA has evolved. Expect refined features, an enhanced app interface, and an elegantly updated design. 1837 Spruce Street South Pasadena, California CA91030. in 2015.
New Features
Built-in Angle Control
Device Link
Your Combination. Your Experience.
SESAME 5 USA and SESAME Touch / Touch Pro
One Lock. Multiple Keys.
SESAME 5 USA and Open Sensor
Leave auto-lock to us. Sesame locks after sensing the door is closed.

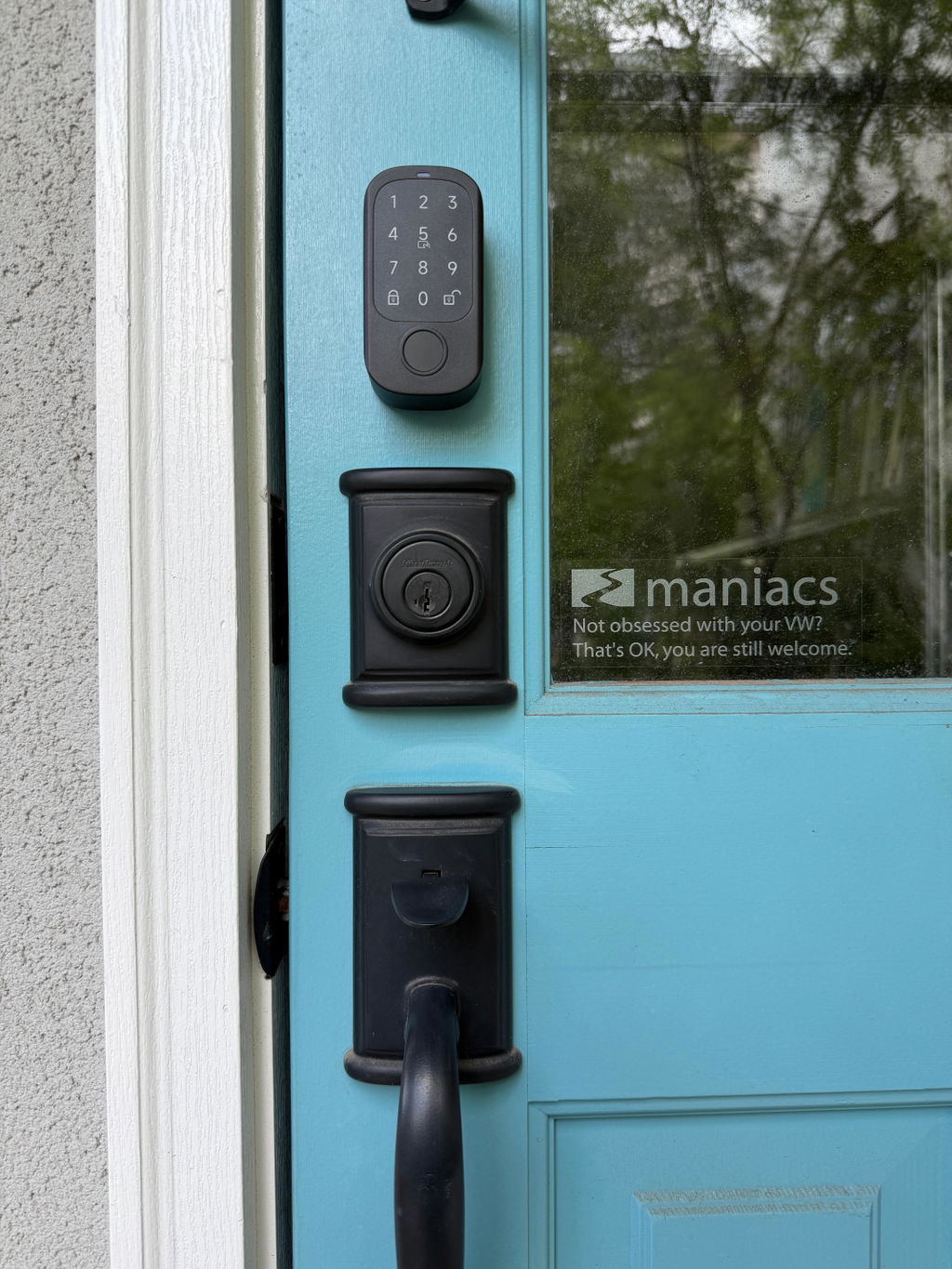

SESAME 5 USA and SESAME Touch / Touch Pro
One Lock. Multiple Keys.
SESAME 5 USA and Open Sensor
Leave auto-lock to us. Sesame locks after sensing the door is closed.
Design

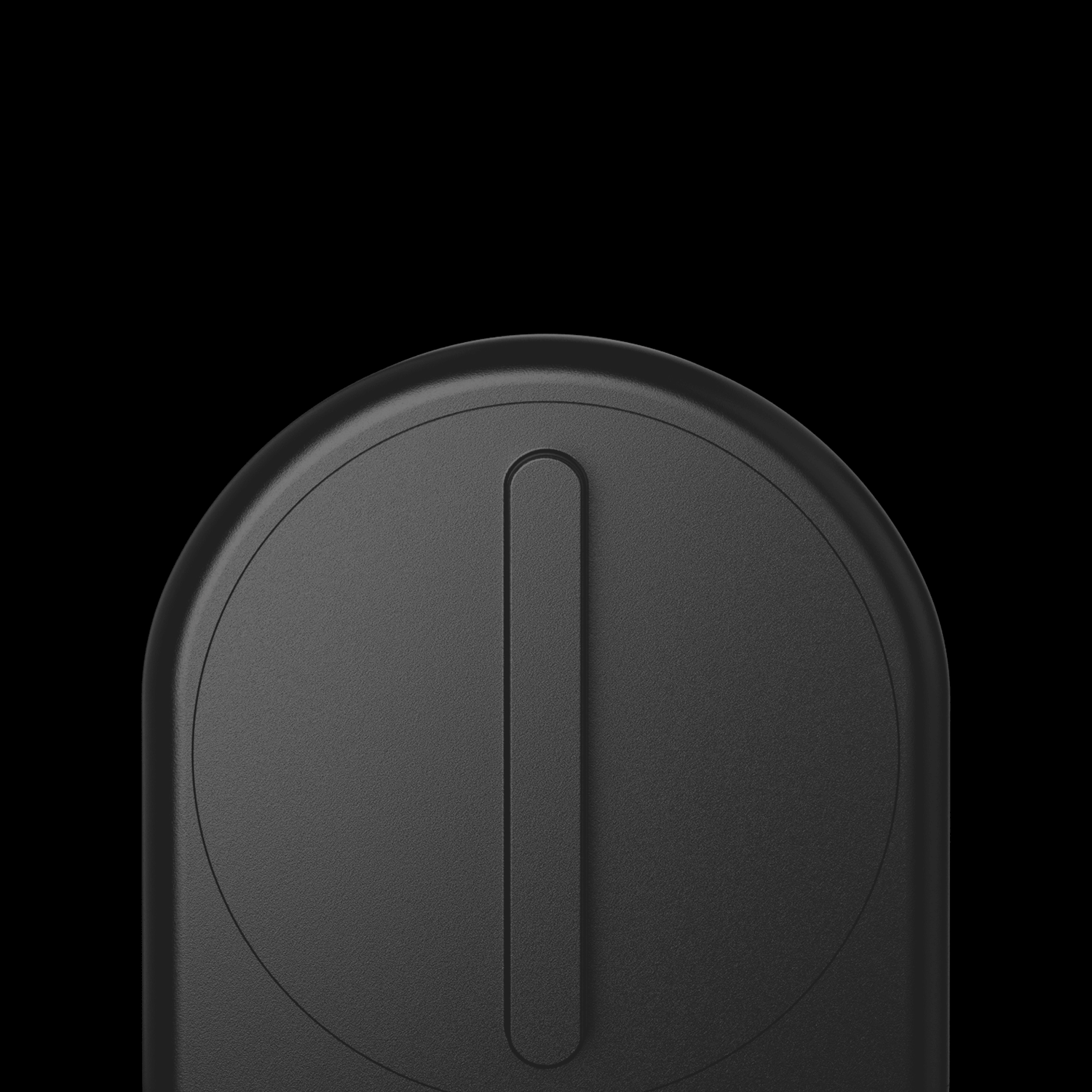

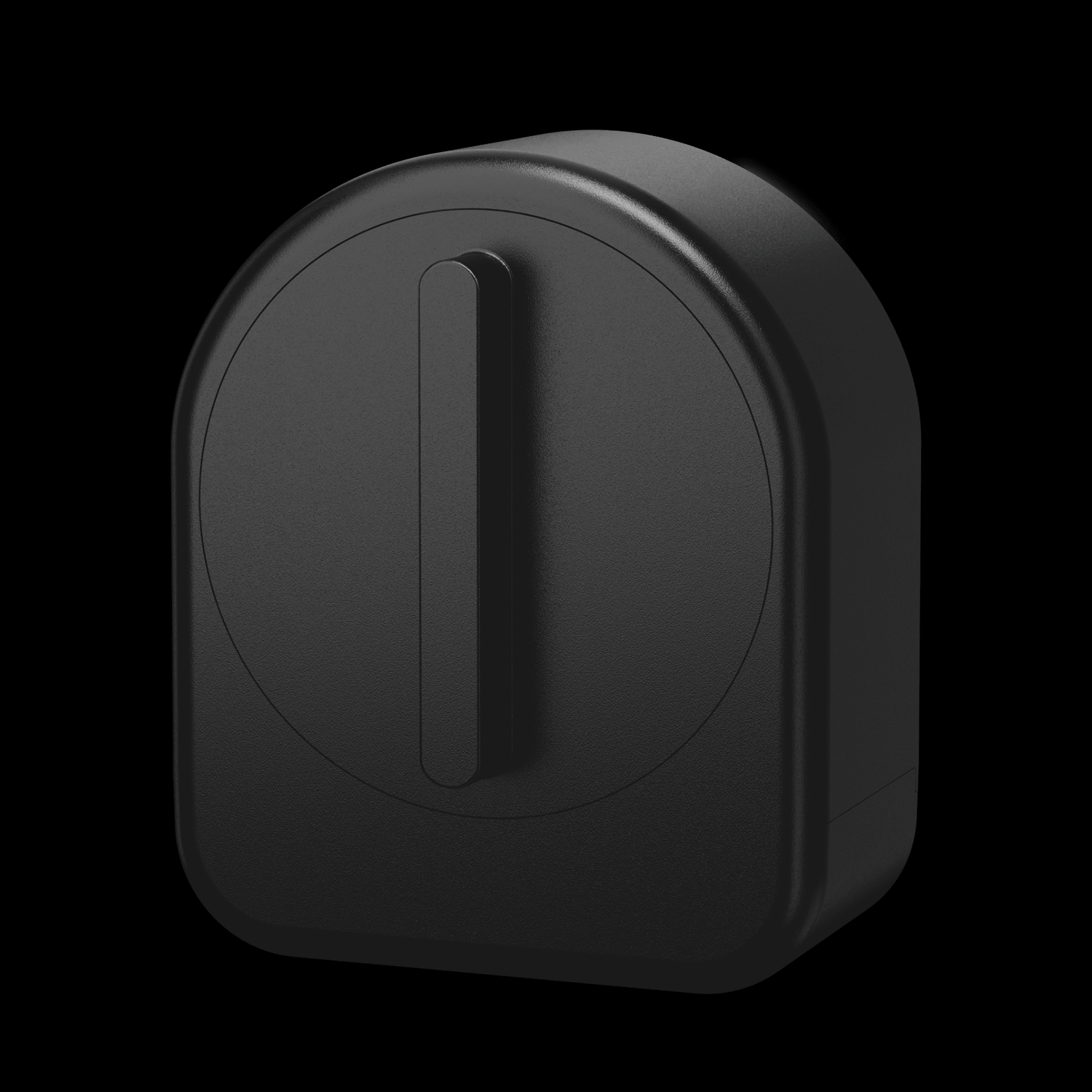

Beloved Original, Reborn.
Softened edges for a smoother, rounder profile.
Compatible with international lock standards

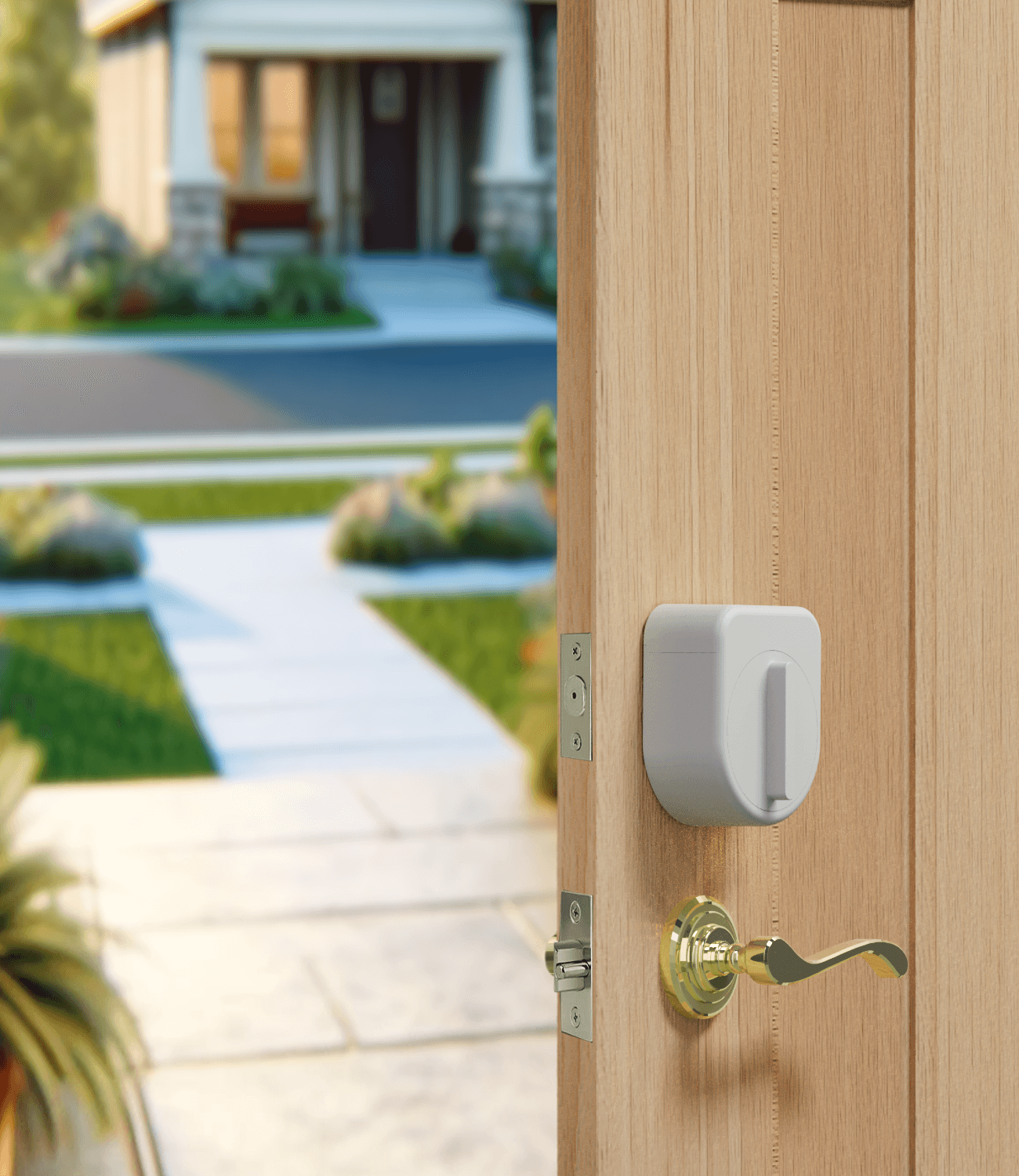

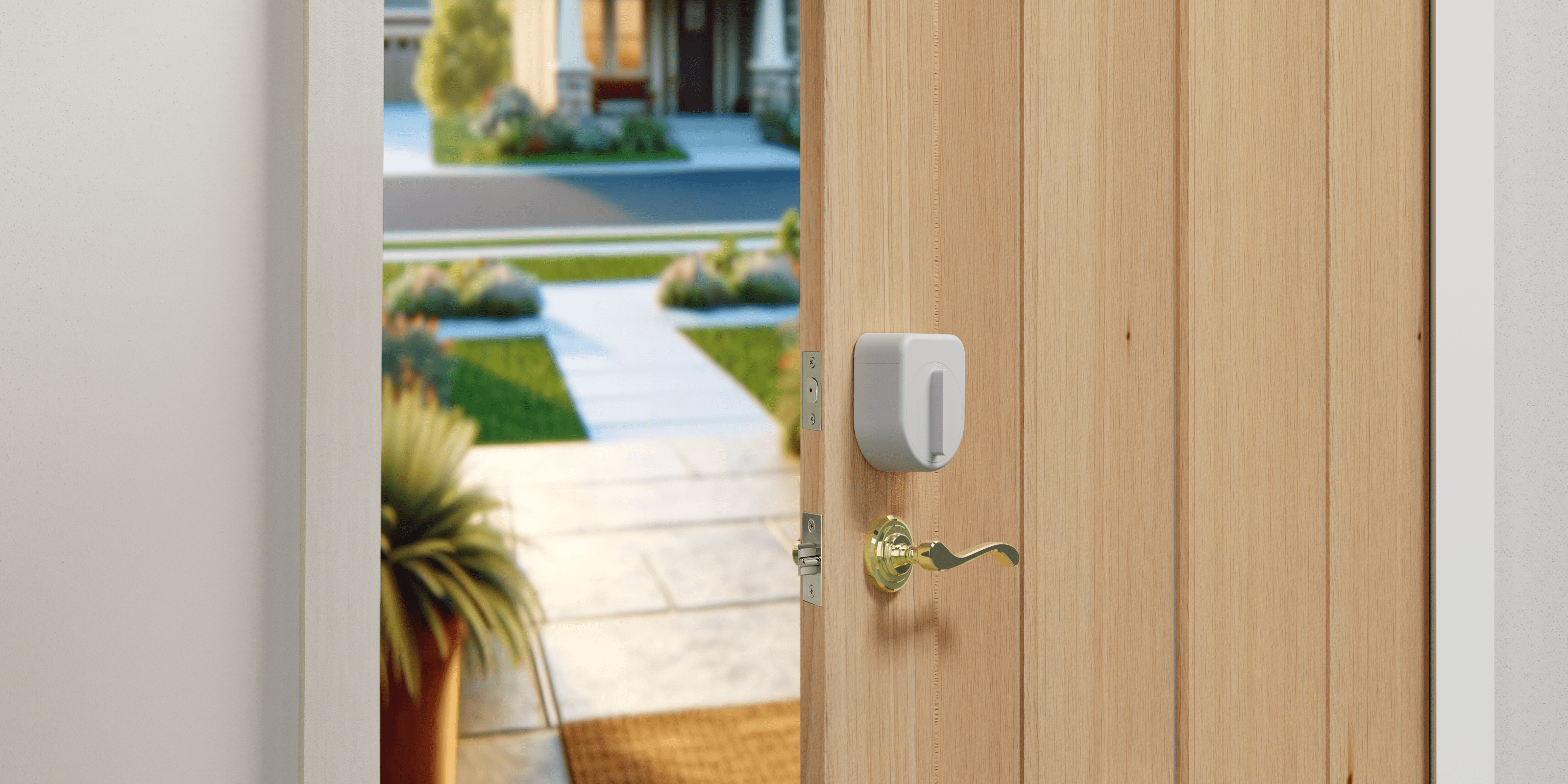

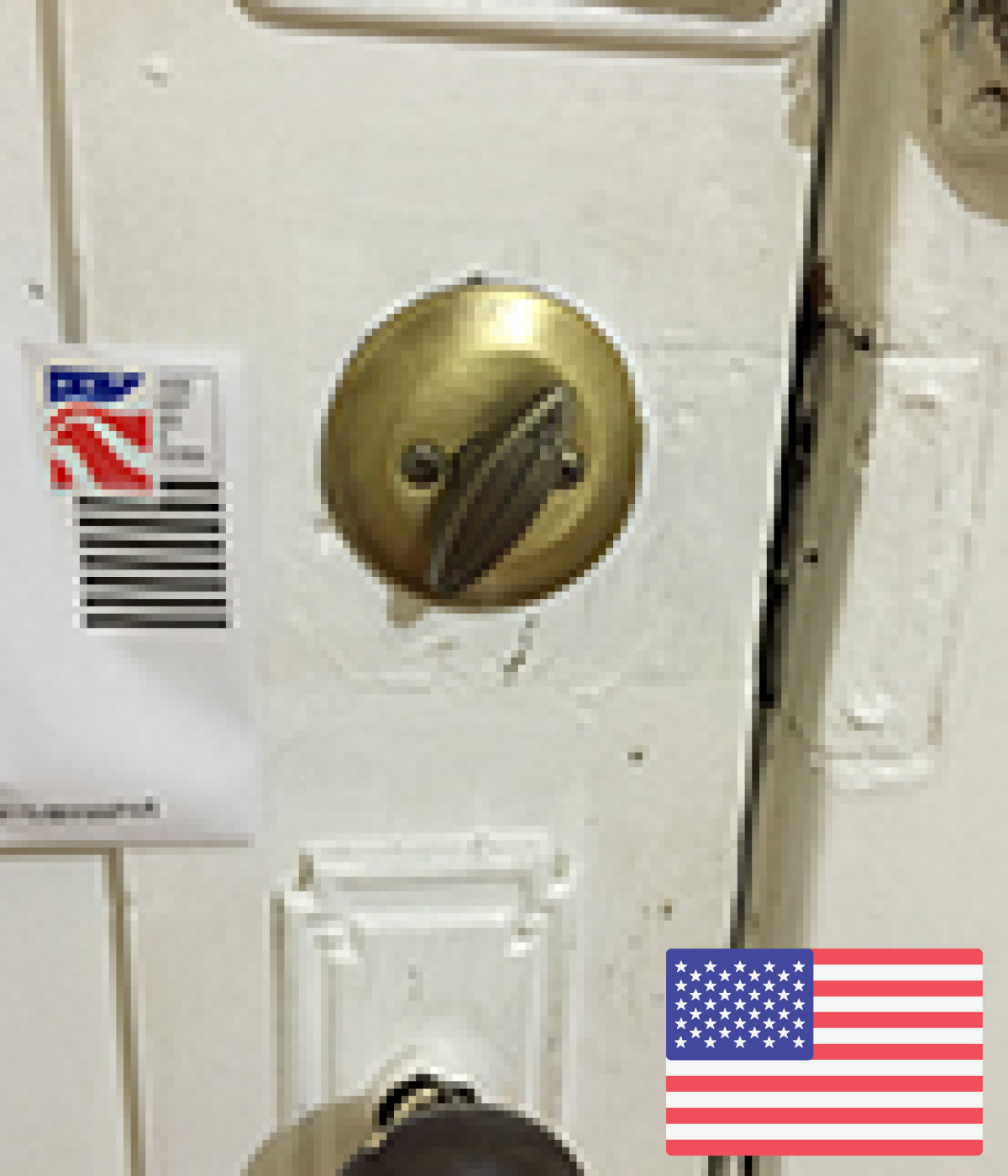

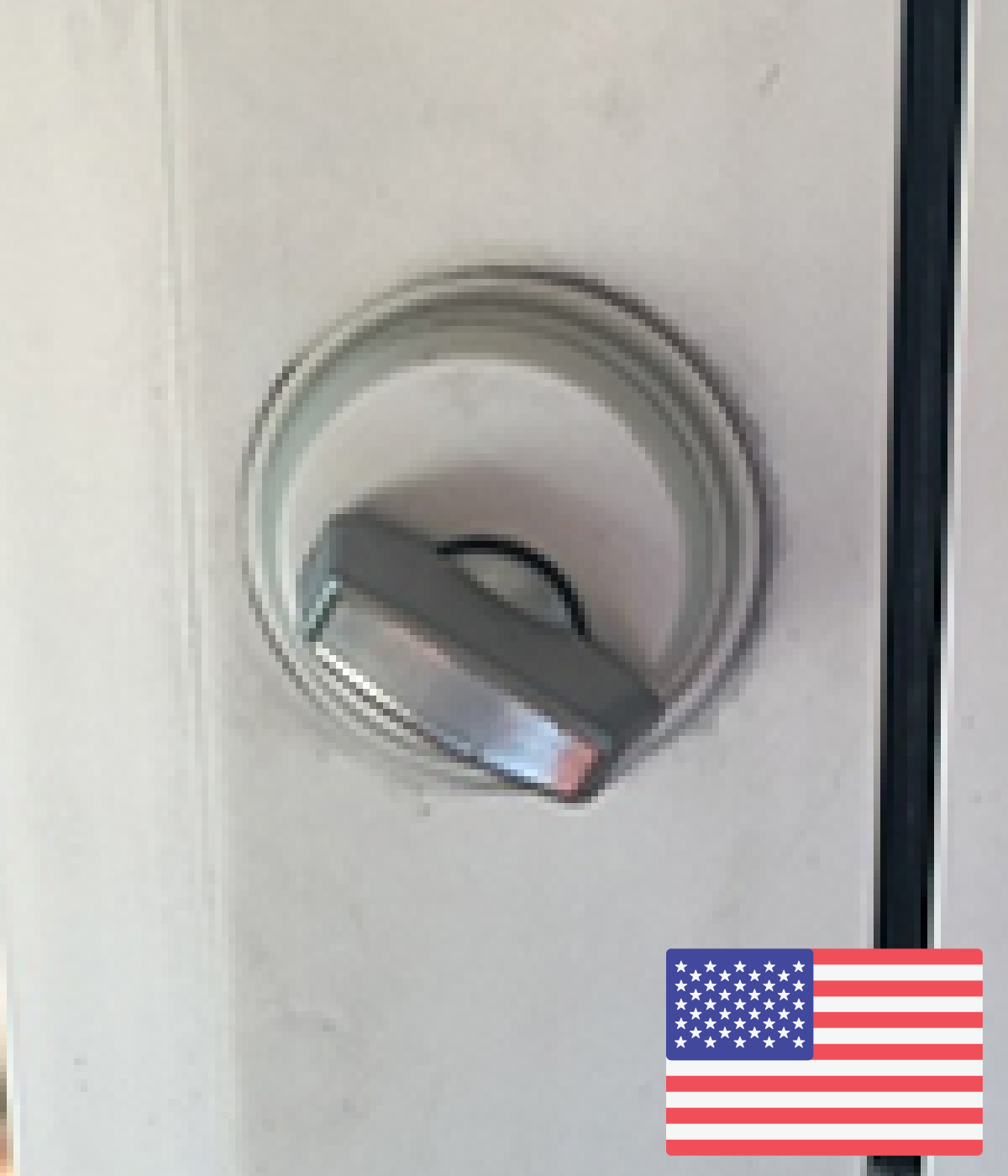

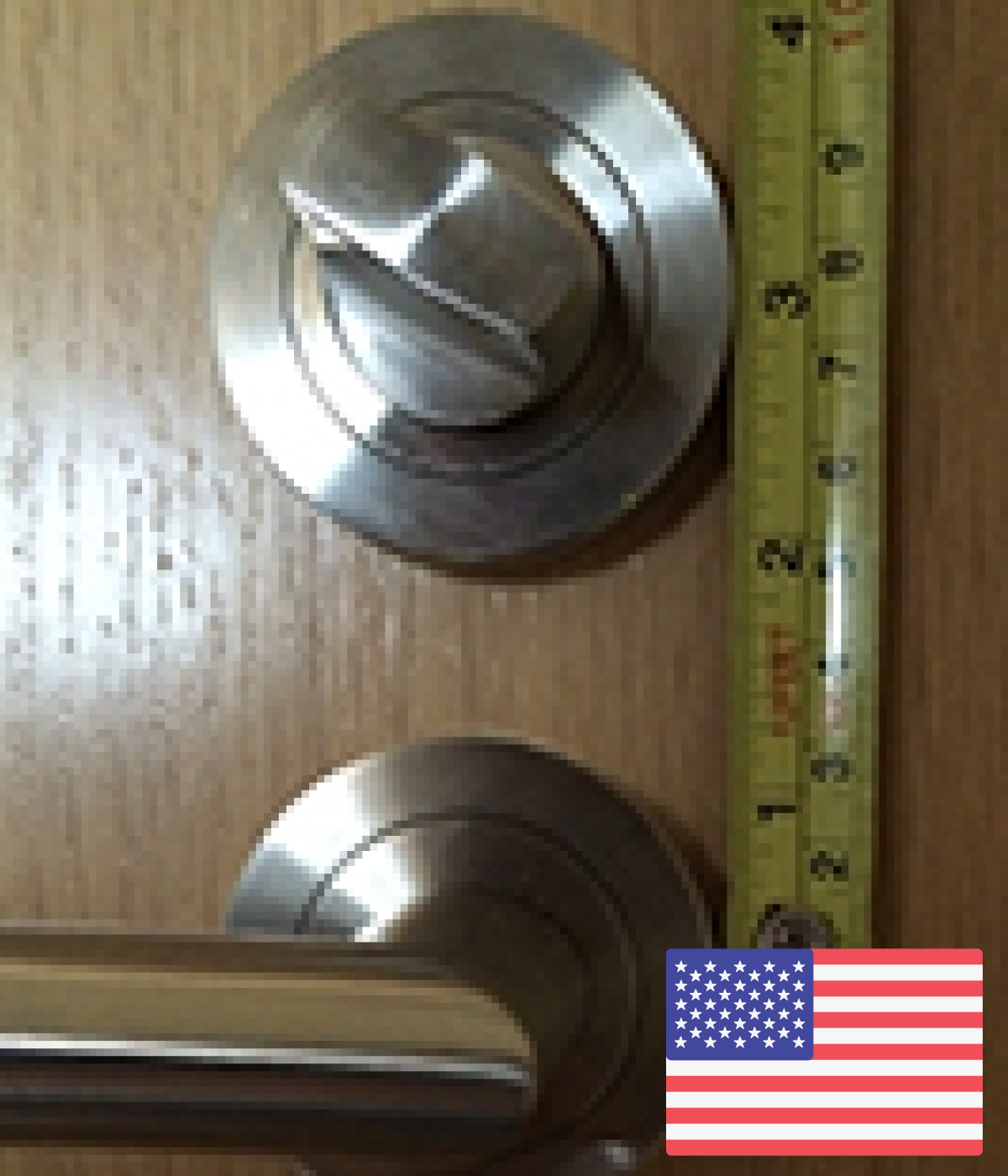

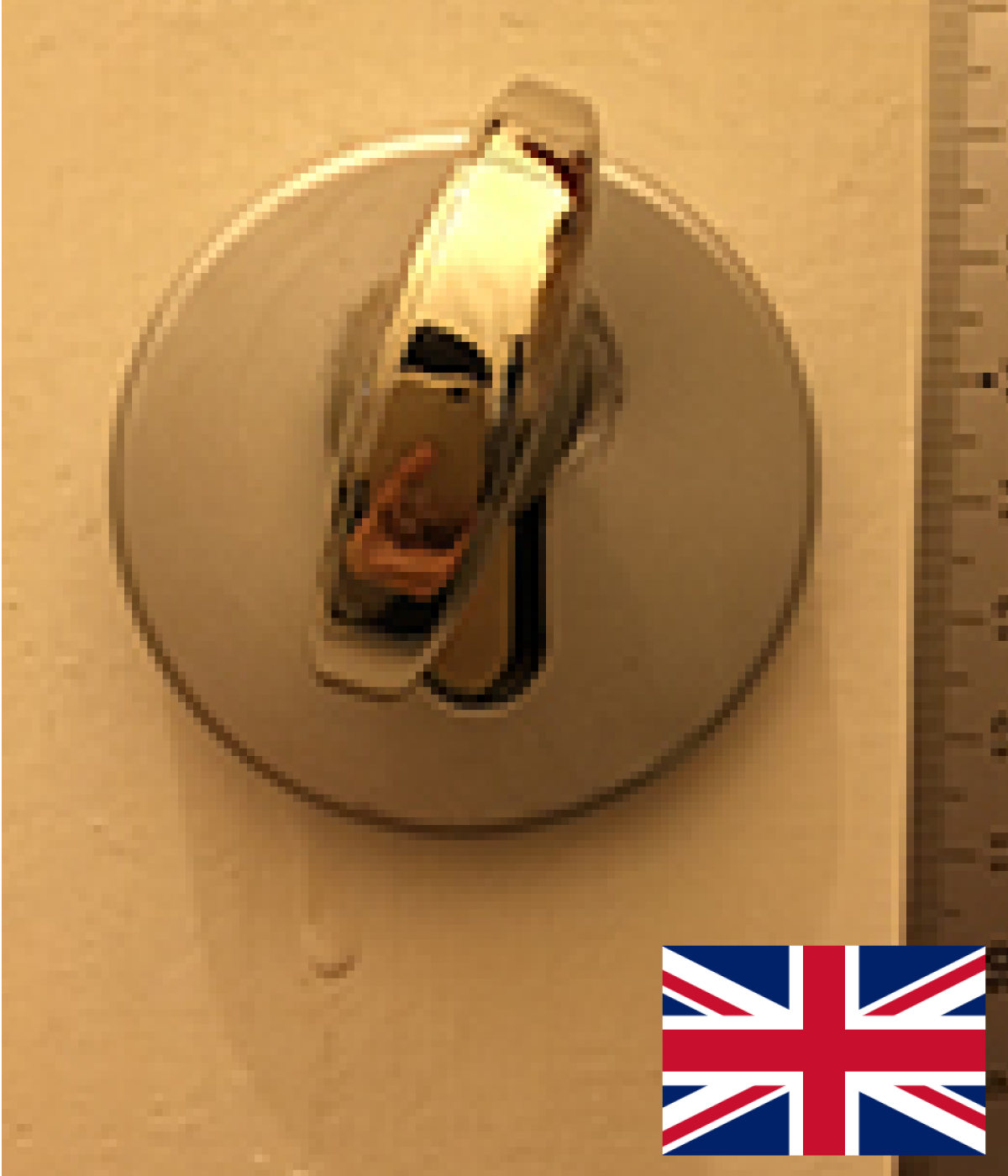

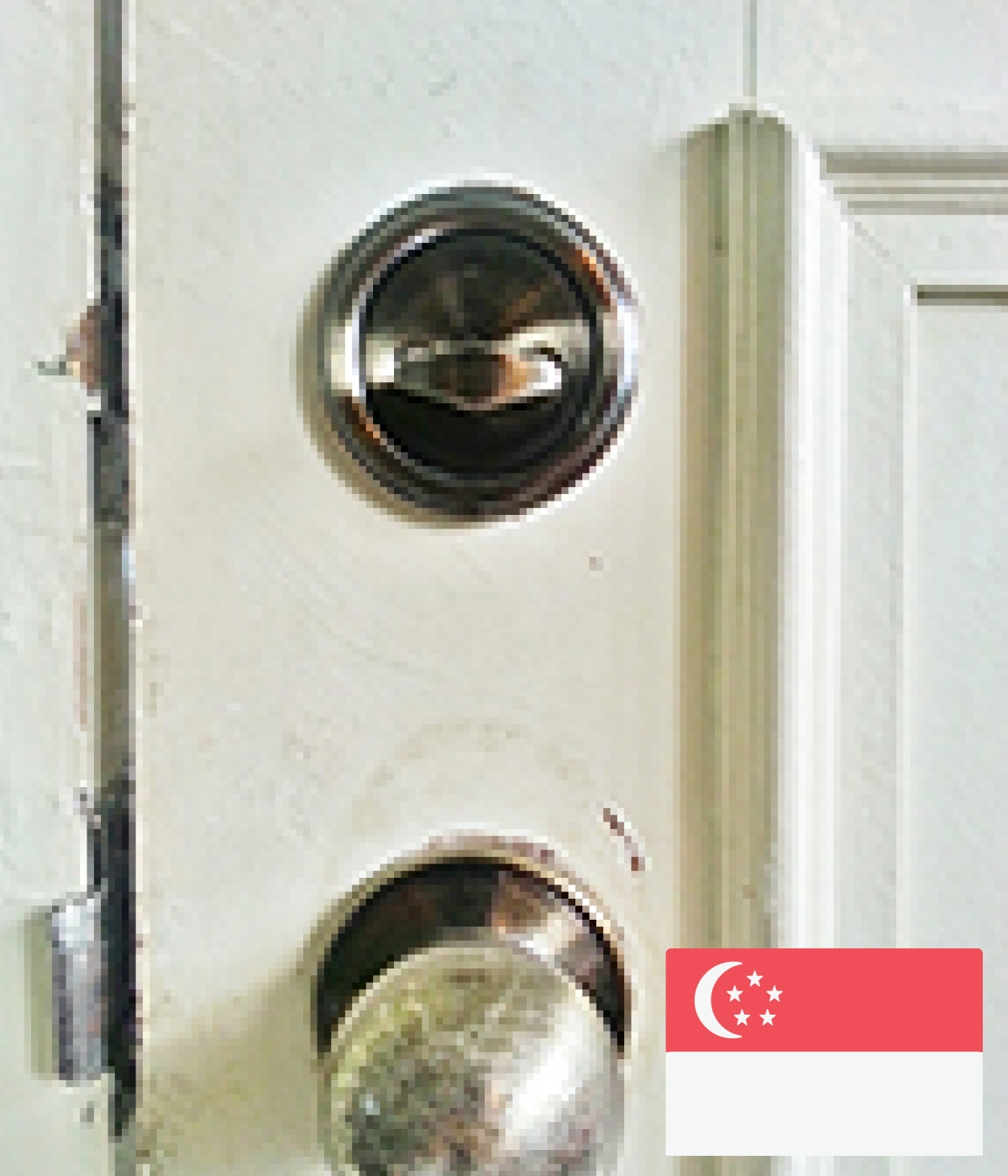

Compatible Door Locks

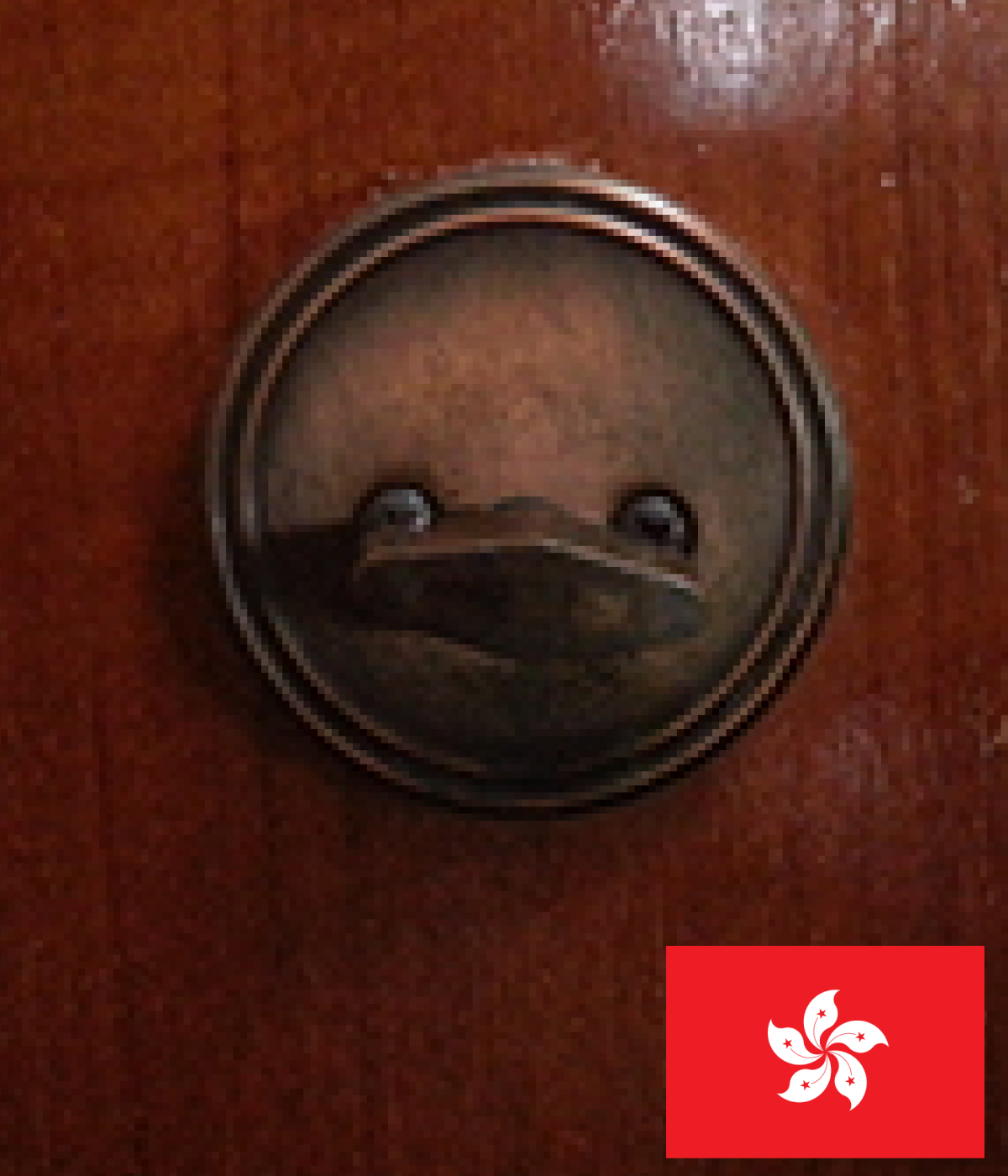

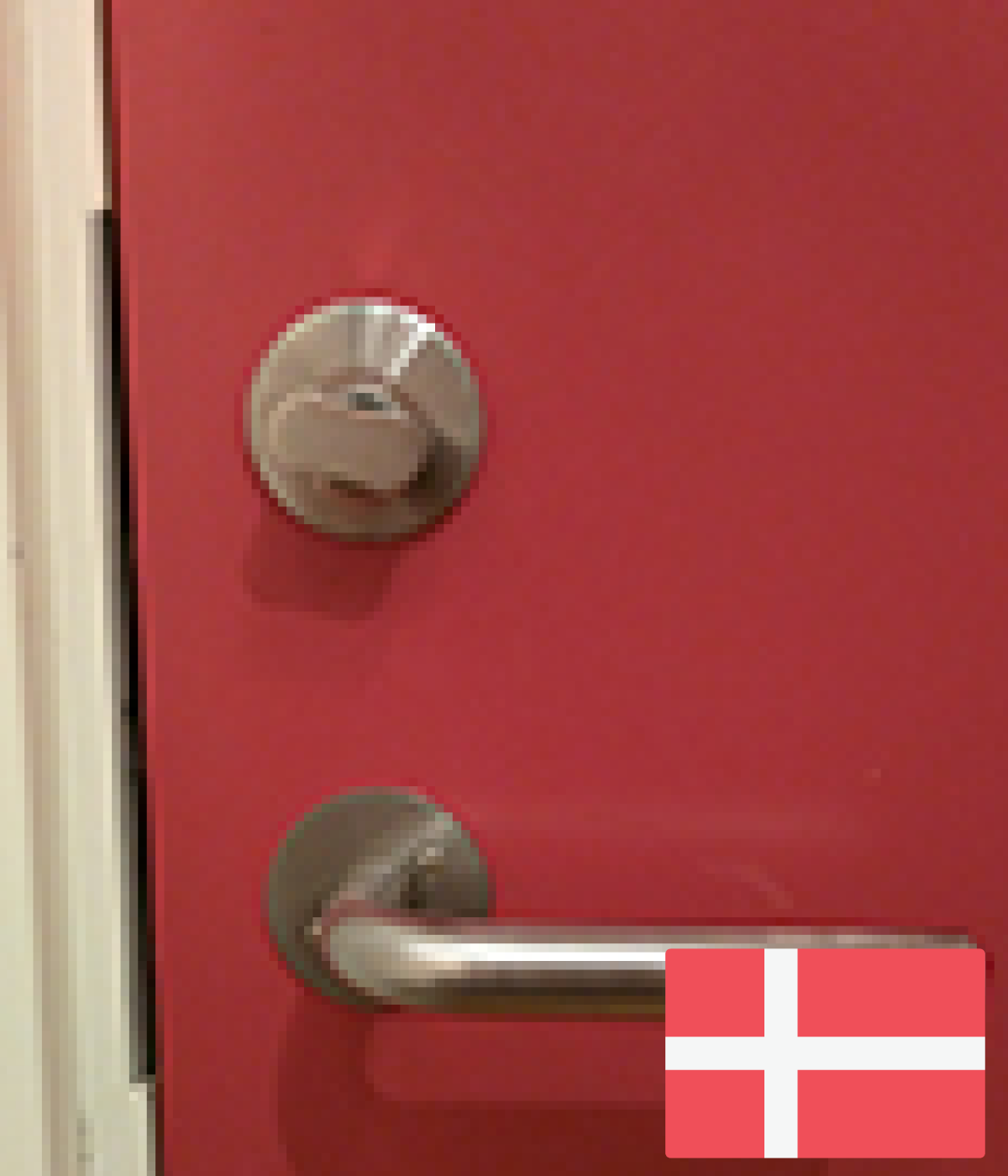

The Sesame 5 North American & Nordic Edition has been specifically developed to fit international door lock specifications
Base & Thumb Turn

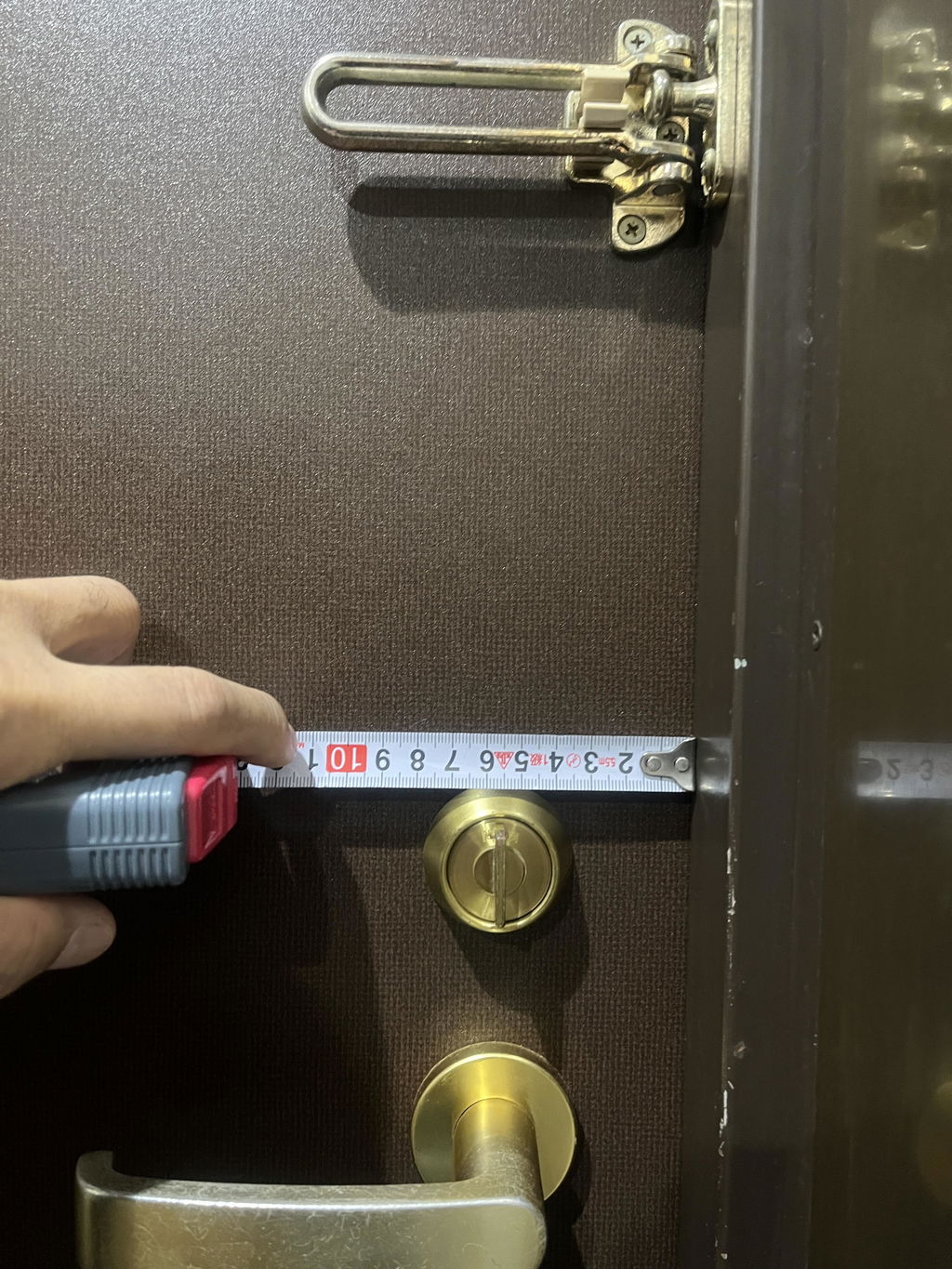

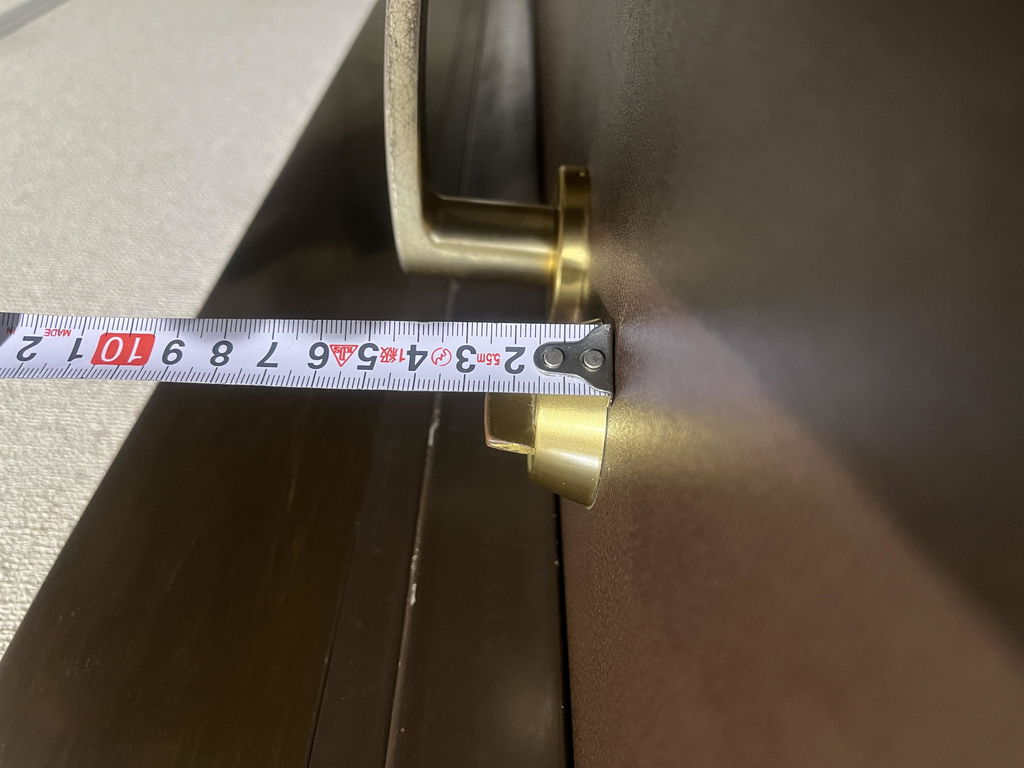

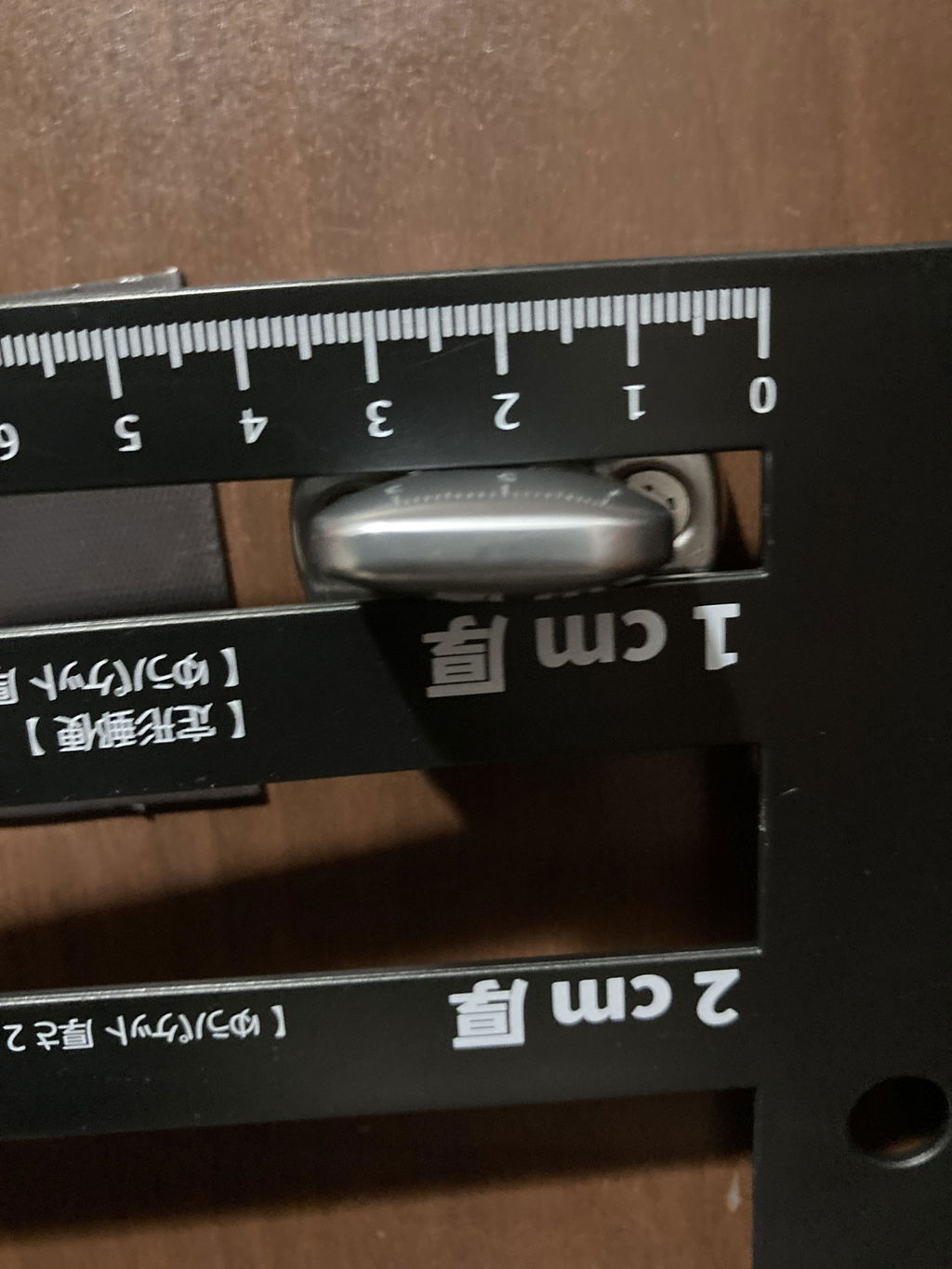

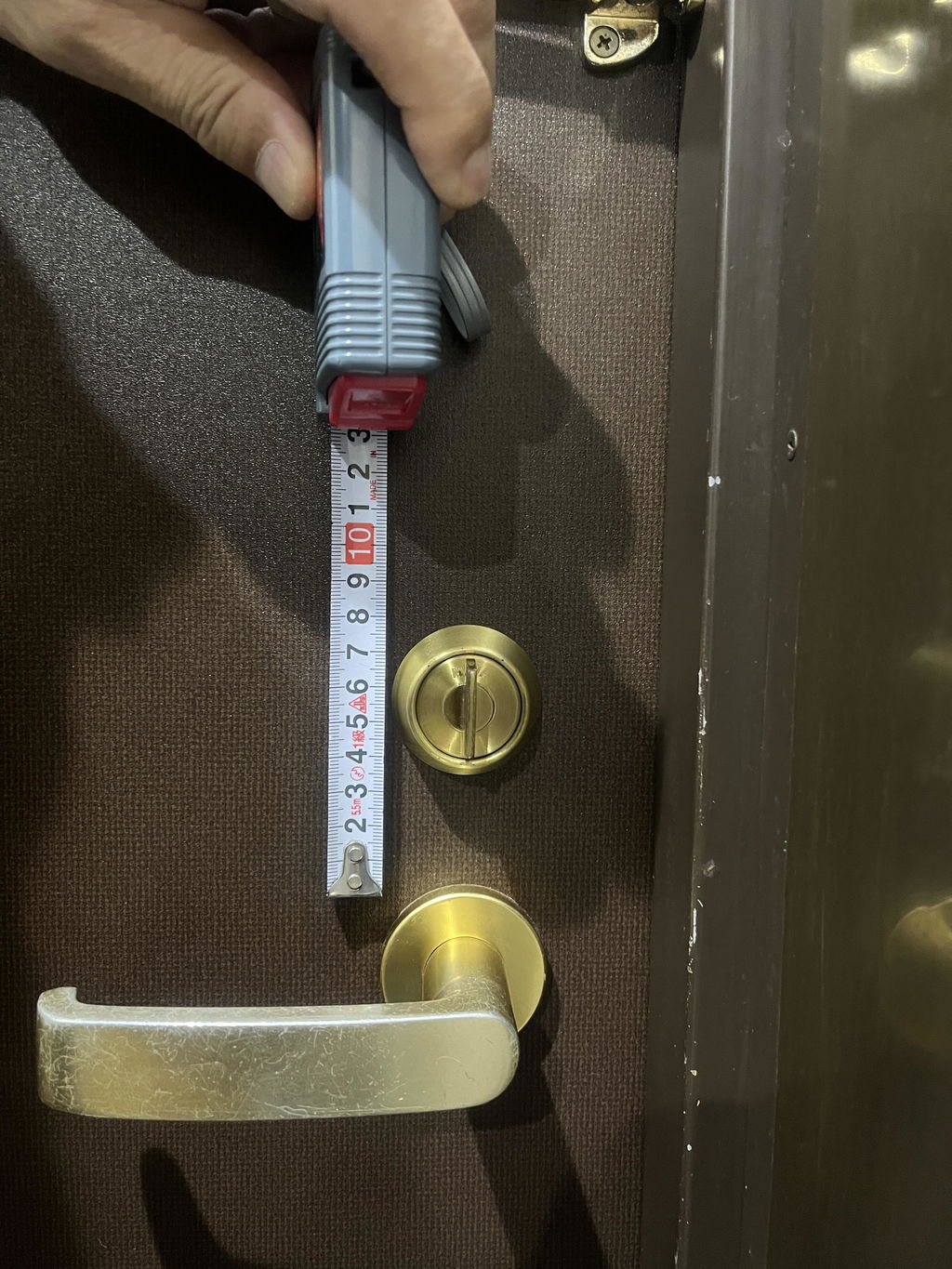

Fits most deadbolt locks within specified dimensions. Check your door's measurements to ensure compatibility.
Only Thumb Turn
Base & Key
Only Key
Base & Thumb Turn
Fits most deadbolt locks within specified dimensions. Check your door's measurements to ensure compatibility.
Only Thumb Turn
Base & Key
Only Key
Compare
Compare with Other Model
* The original WiFi access point is not supported.
170g
140g
186g

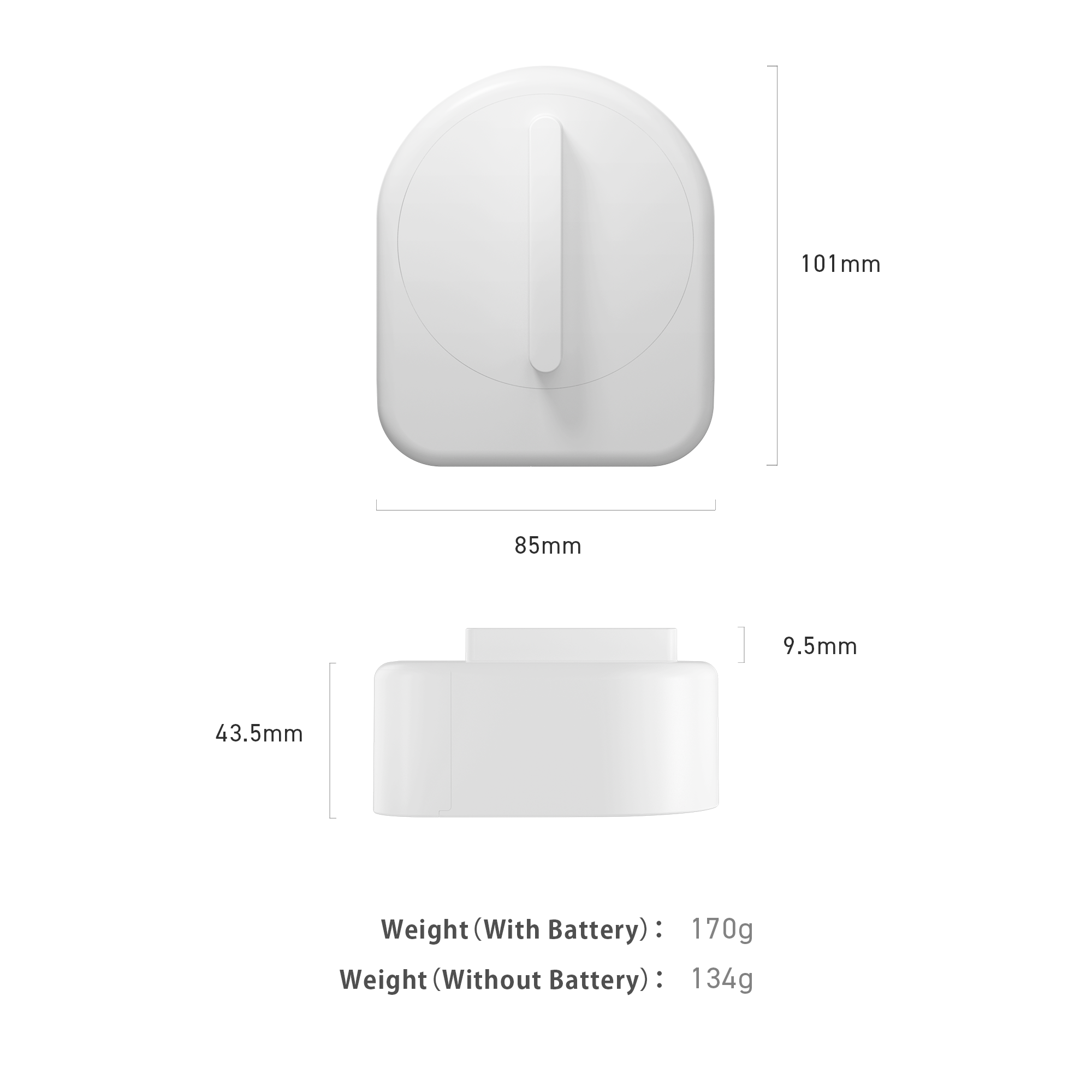

101.0 mm x 85.0 mm x 44.0/52.0 mm（Height without / with Thumb Turn）
92.7 mm x 57.0 mm x 41.7/53.7 mm（Height without / with Thumb Turn）
105.9 mm x 45.0 mm x 46.5/56.5 mm（Height without / with Thumb Turn）
Over 1 Year
Over 1 Year
Over 1 Year
11.0 or Later
11.0 or Later
11.0 or Later
5.0 or Later
5.0 or Later
5.0 or Later
3
3
3
2 devices
2 devices
2 devices
Supported
Supported
Supported
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Works with Hub3 *
Yes
No
No
Advanced Software:
• Smart lock equipped with SesameOS 3
• Matter compatible
• Connectivity with Touch/Touch Pro: One SESAME can link with two SESAME Touch/Touch Pro units
• Multi-Task function: Multiple devices can simultaneously connect to SESAME via Bluetooth
• Always Connect: Connects via WiFi while searching for Bluetooth (requires separate Hub3)
• Free Bluetooth API
• Open source app
• Key sharing via QR code
• No login required
• Stable history reflection
• Stable Apple Watch app (compatible with Series 3 and later models running WatchOS 7 or above)
• Widget functionality
• NFC tag support (iOS compatibility: iPhone XS and later models running iOS 13.1 or above)
• Notifications: Smartphone alerts when someone opens or closes the door, monitor family members' return home status
• Remote operation: Manage from distant locations using Hub3 (The original WiFi access point is not supported)
•Connectivity:
Refined Hardware:

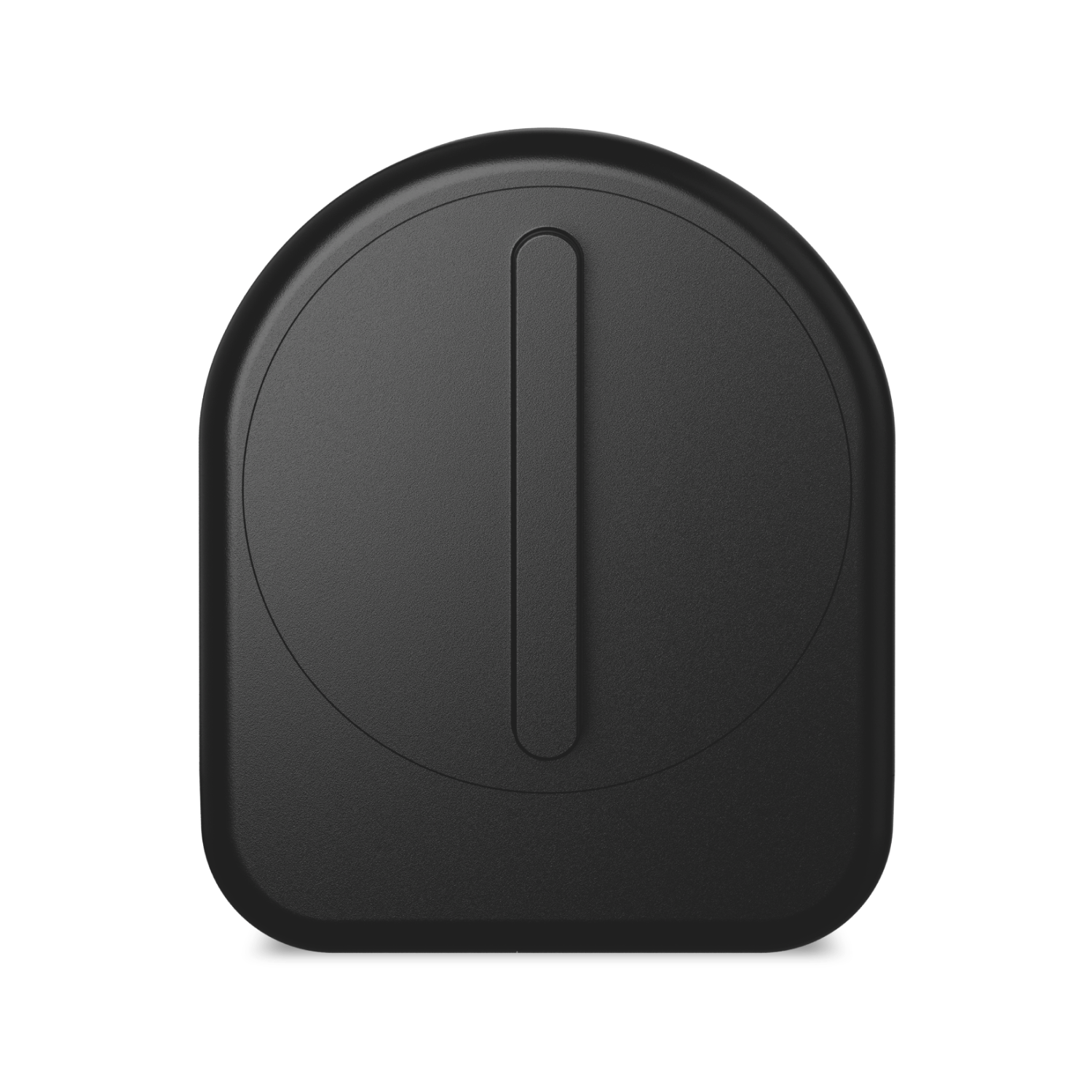

• Color options: Available in White and Black

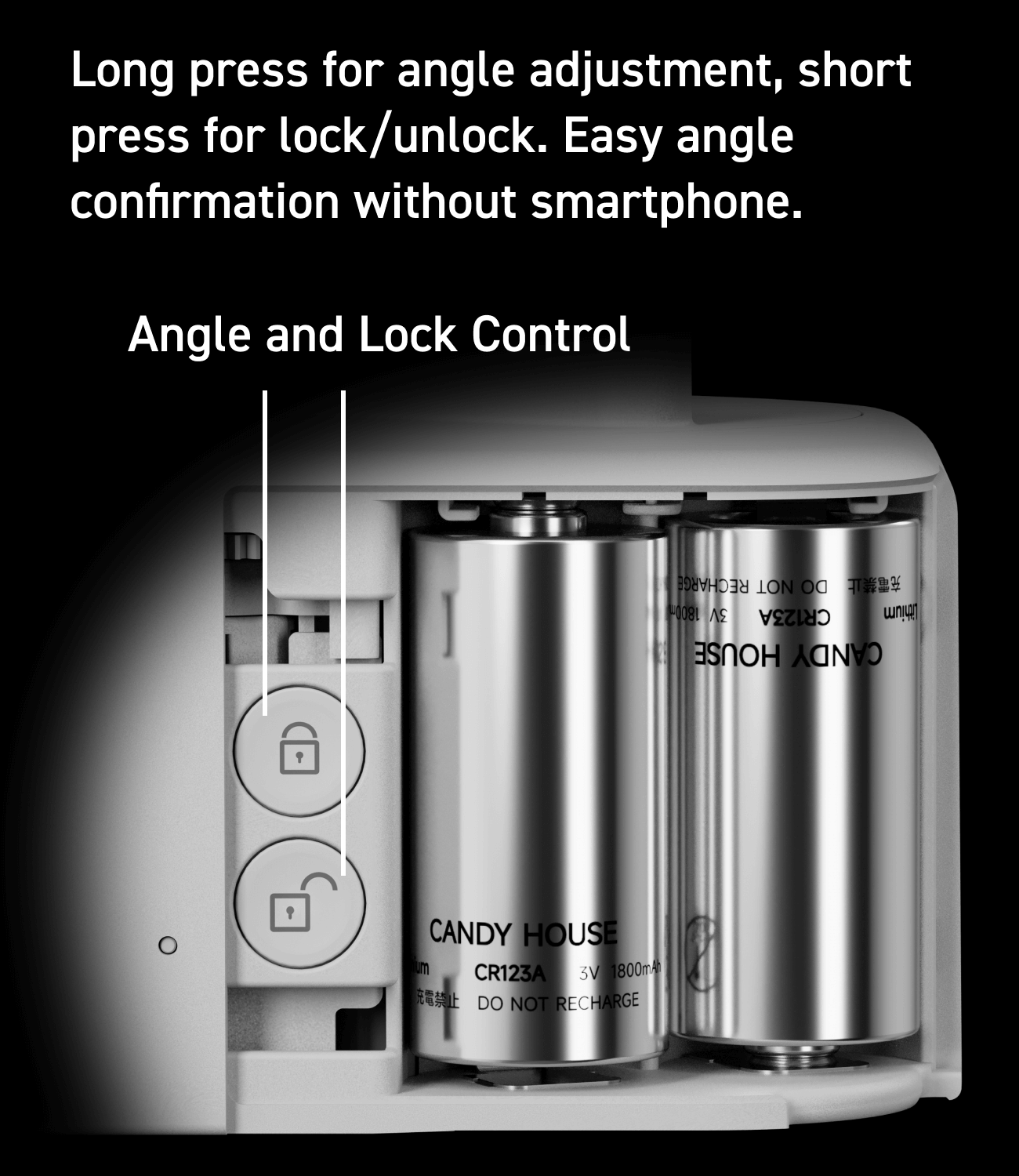

• Built-in button: Integrated button (inside battery cover) for angle setting or locking/unlocking
• Battery life: Over 1 year. Smartphone notification when battery is low (feature to be added in the future)
• Compatible thumbturn rotation angle: Supports multiple rotations of 360° or more
Note: If your lock is NDR/HP40/Push-pull (B5/U1), this SESAME 5 North American/Nordic version is not compatible. Please purchase SESAME 5 or SESAME 5 Pro instead.

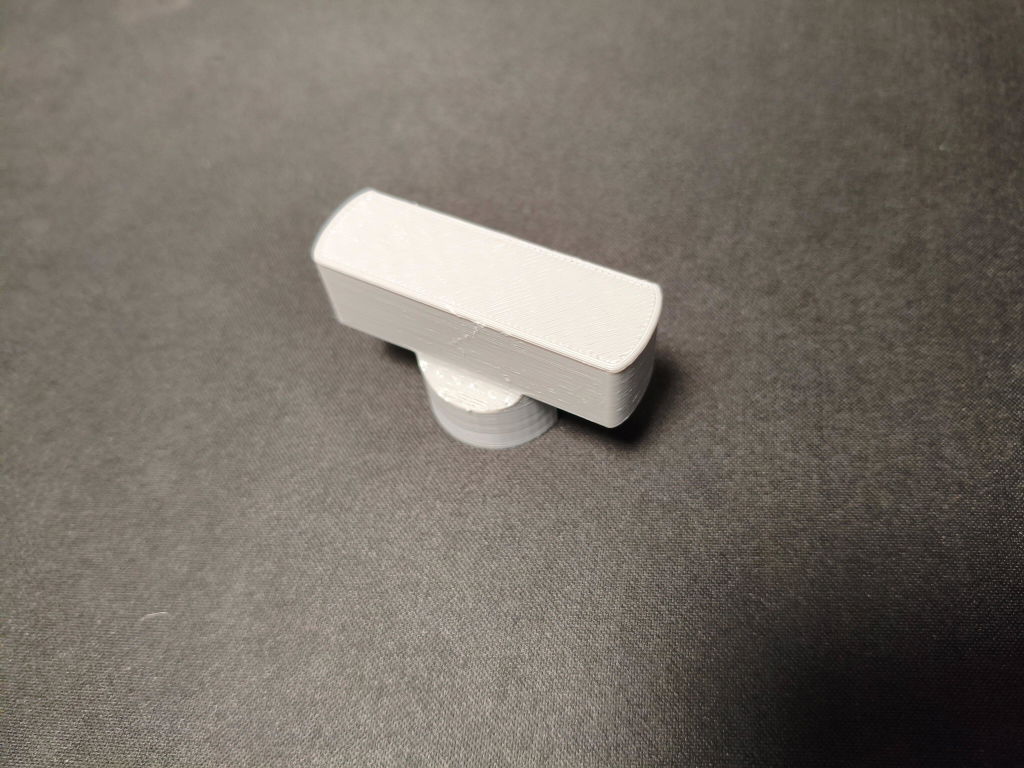

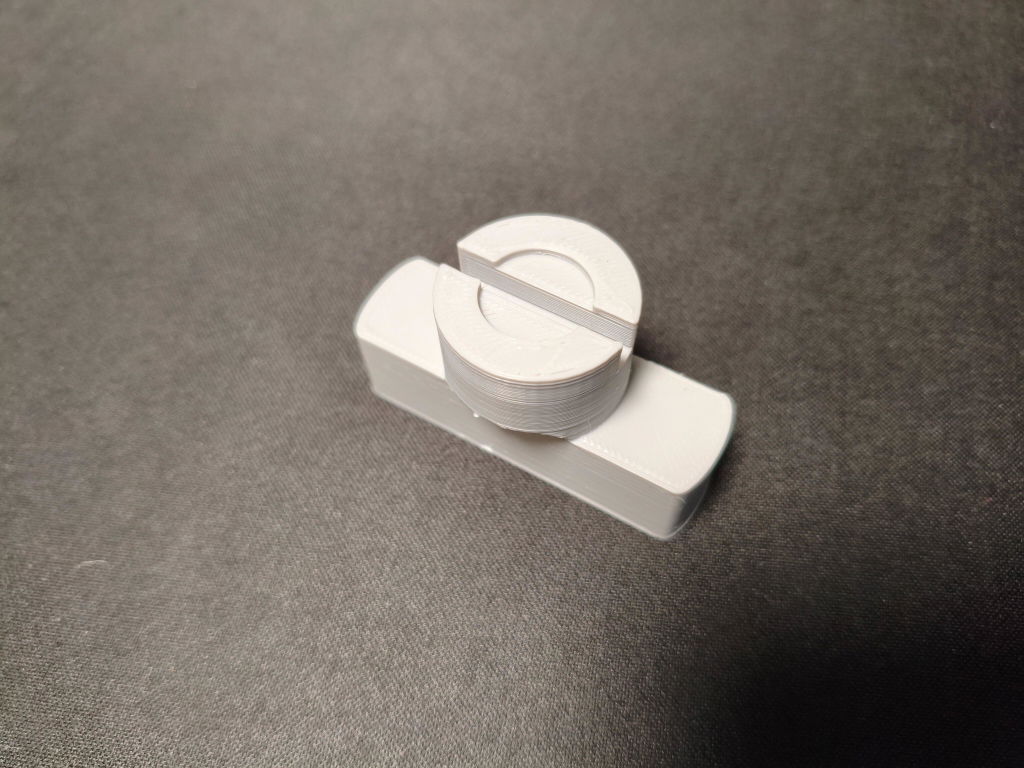

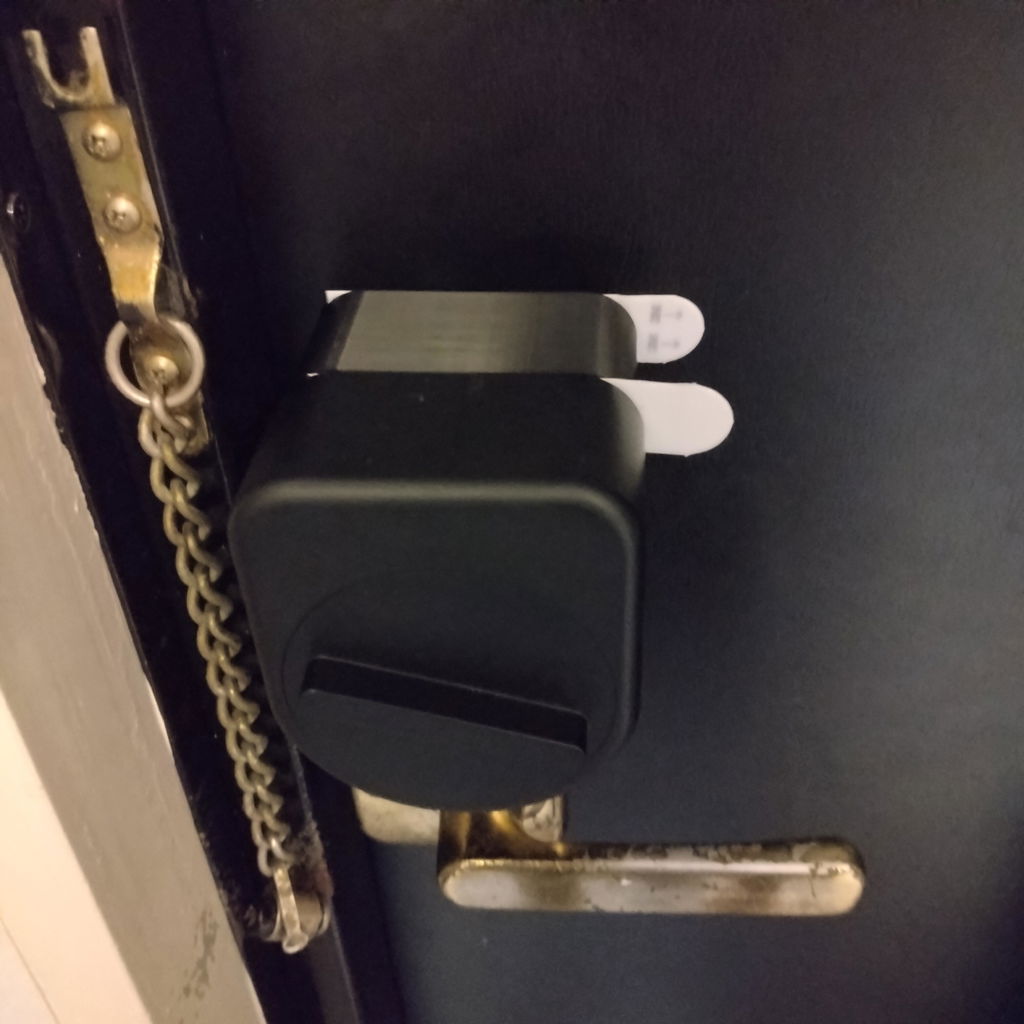

• Compatible with various locks: For locks requiring special adapters, we create them using 3D printers. These are shipped separately, even when ordered with SESAME 5 North American/Nordic version. You can directly request adapters for common locks here! If you can't find a matching lock, please contact sesame@candyhouse.co with a photo of your lock.
• More advanced, significantly faster in-house semiconductor (SESAME 5 North American/Nordic version has the same performance as SESAME 5):
セサミ4とセサミ５の指紋の反応スピードを比べてみました😊✨ pic.twitter.com/VmzpNHkBG3
— セサミスマートロック🔑 (@candy_house_jp) June 7, 2023
⚠️The following types of keys will not be able to respond to sesame, so please check before purchasing.
・ Sam -turn with specifications with a specification that does not have a constant lock/unlocking angle that tries to return automatically after unlocking/unlocking.
・ Sam Turn with play
・ Two -step locking -unlocking method (only hard guard type)
・ Thumb turn that rotates after pushing the knob
・ Sam Turn with a lock/unlocking angle of 50 degrees or less
・ Sliding door type up and down slide thumb turn
・If the locking/unlocking angle of the lock you are using exceeds 180 degrees, we recommend using the Remote for locking/unlocking, instead of manually doing it from the inside.
Also, if you are uneasy whether your home or company key is compatible with sesame, please contact us sesame@candyhouse.co

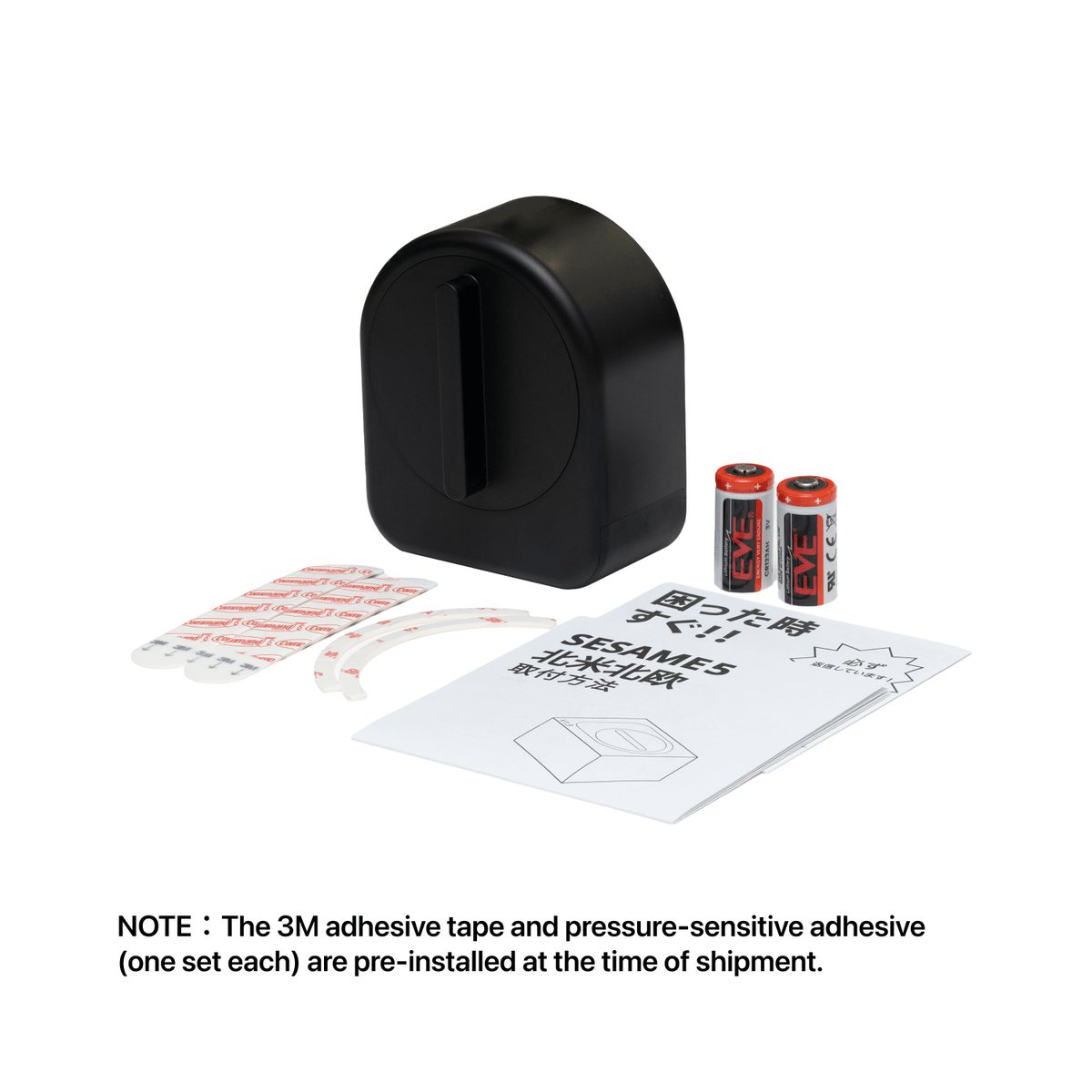

Included Accessories:
• 3M tape for SESAME 5 USA (3 sets)
• Pressure Sensitive Adhesive (PSA) (3 sets)
• High-performance, high-capacity 3.0V 1800mAh CR123A batteries (2 pieces, 1 set)
• User manual (1 book), Warranty card (1 book) (PDF of the original document available here)
